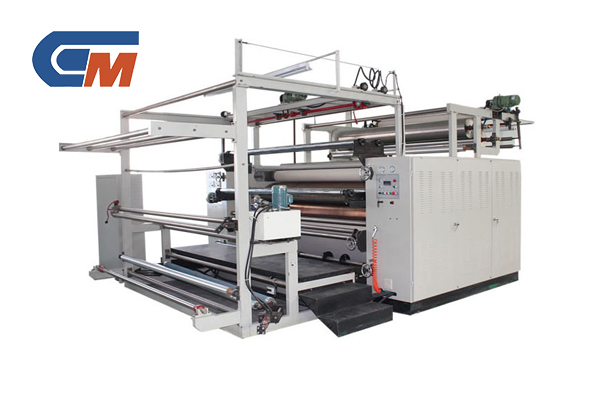

Home textile heat transfer printing machine

Configuration, parameters, flow chart and pictures of heat transfer printing machine

1: Nominal door width: (customized according to customer requirements) wall panel frame size (1600x2500).

2: Main roller (customized according to customer requirements)

3: Blanket: we choose imitation imported blanket (can be customized according to customer requirements: domestic, imported, Taiwan, imitation imported)

4: Heating mode: electric heating tube with heat transfer oil

5: Transmission mode: we choose 5.5kW speed regulating motor, 155 worm gear reducer, and the main roller is driven by sprocket to run 25m / min --- 35m / min.

6: Feeding device: the feeding frame with photoelectric tracker is selected, and the feeding place is equipped with a special supporting arc roller, two sets of tension devices, and one wire dividing roller. The rest should be equipped with devices

7: Cloth delivery device: we choose 2--- Ø 325 water cooling roller (surface plated with stainless steel) and cloth dropping roller (surface coated with rubber) with pneumatic pressure roller

8: 7 pieces were selected Φ 150x10x2200m / M guide roller and auxiliary roller are all changed to flange connection type（ 45 excellent round steel is selected for shaft head, which is assembled after quenching, tempering and finishing turning

9: Inflation control: our cylinder controls inflation. Manual correction. And equipped with synchronous gear (to ensure thrust balance. Blanket will not have bell mouth)

10: Collecting and placing paper device: we choose two sets of magnetic powder clutch and two sets of magnetic powder tension controller (this is more convenient for us to control the tension)

11: Retracting and filling device: equipped with a set of retracting and filling device, we are equipped with gear type (flange type edge paper) complete machine with 5 gas expansion shafts

12: A set of lifting crane is equipped on the cloth feeding frame (bearing about one ton)

13: Electrical control part: A: with 1500x800x4500 single electric cabinet; b: Equipped with 2 axial fans, lock voltmeter and ammeter; c: We choose a set of Japanese intelligent temperature control instrument (with a set of silicon controlled heating system, which can save about 80% of energy consumption)

14: Equipped with a set of static eliminator

15: Hard chromium plating on the surface of main roller (customized according to customer's needs)

16: We choose variable frequency motor and variable frequency drive for main engine drive and water cooling

Sample display
