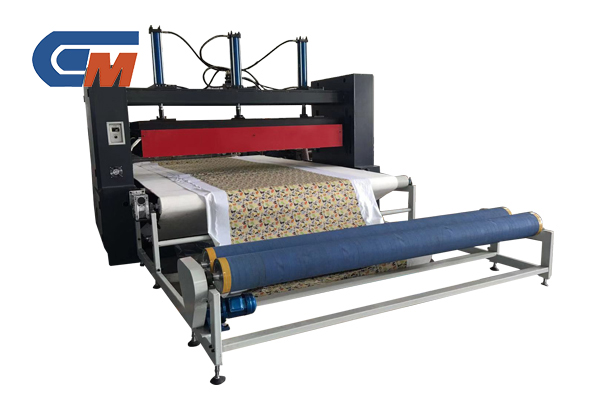

Flat embossing machine

DETAILS



Embossing features:

Fast starting time

Well formed

Automatic butt joint without seam

Automatic cloth in and out

Equipment features:

The high-frequency and large current of 3D embossing machine flows to the heating coil which is wound into a ring or other shape, thus producing a strong magnetic beam with instantaneous polarity change in the coil. When the metal and other heated objects are placed in the coil, the magnetic beam will pass through the whole heated object, and a large eddy current will be generated in the opposite direction of the heating current inside the heated object, Because there is a resistance in the heated object, it will produce a lot of Joule heat. Through the hot plate, the heat will be introduced into the abrasives and then into the surface of the fabric, so that the temperature of the fabric itself will rise rapidly, so as to achieve the imprinting of the face material. The machine is based on the old flat embossing machine, according to the needs of the market, developed and produced by our technical personnel.

The features of the machine are: fast pressing time, good forming, automatic butt joint without seam, automatic feeding and automatic discharging. Different patterns can be customized according to the needs of customers to meet the needs of customers and the needs of the market.

Purpose of equipment:

3D embossing machine is suitable for: embossing of various fabrics, but also suitable for leather embossing.

samples show


Main parameters

category

parameter

Effective fabric width1.6m

Basic power

60 kw, 6 district heating up and down

Heating time

0 to 40 minutes
Temperature range0-300℃
20 hours of production2000-4000m
Installation dimensions长2.6m x 宽1.4m x 高1.8m

Pressure

5000MPa
Machine weight3 tons
Production0-10m/min
Heating modeSilicon controlled heating more energy efficient
Average energy consumption15 to 23 degrees per hour
