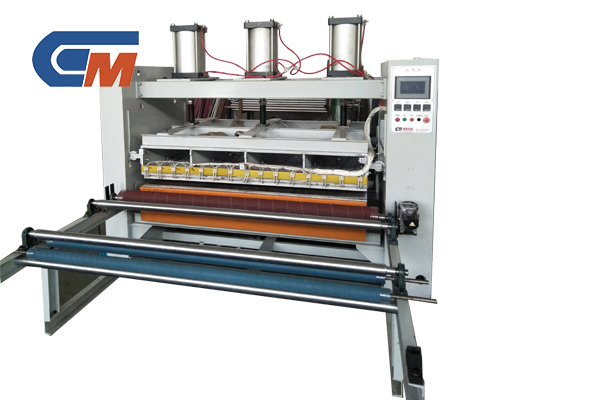

Embossing machine cylinder

DETAILS



Principle of concave convex flat embossing machine:

The high frequency current of the embossing machine flows to the heating coil (usually made of stainless steel tube) which is wound into a ring or other shape, thus producing a strong magnetic beam with instantaneous polarity change in the coil, and then penetrating the magnetic beam to the surface of the fabric through the mold. In the opposite direction of the fabric and the heating current, the corresponding large eddy current will be generated. Because there is resistance in the fabric, it will produce a lot of Joule heat, so that the temperature of the fabric itself will rise rapidly, so as to achieve the brand of the fabric.

The machine is based on the old flat embossing machine, according to the needs of the market, developed and produced by our technical personnel.

The features of the machine are as follows

It has the advantages of fast starting time, good forming, automatic butt joint without seam, automatic feeding and automatic discharging design. It can customize different patterns according to the needs of customers to meet the needs of customers and the needs of the market.

Sample display


Parameters:

Category

parameter

Width1.6m
Basic power60 kw, 6 district heating
Heating time10 to 30 minutes
High temperature0-300 degrees
20 hours of production2000----4000m
Installation dimensions长3.1mx1.4mx1.8m
Pressure5000MPa
Machine weight2.5 tons
Production2m/min
Silicon controlled heatingEnergy saving
Average energy consumption15-23 degrees/h
