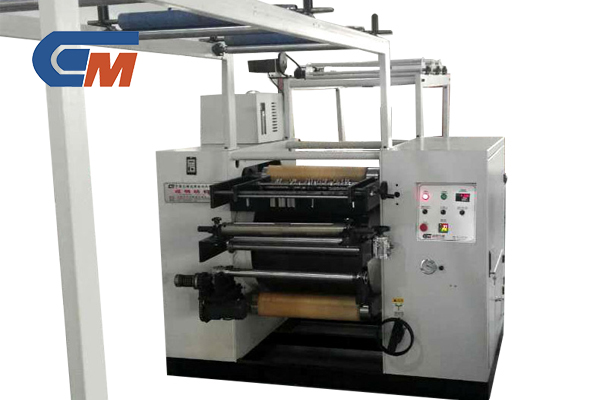

Ribbon printing series

DETAILS


Equipment introduction:

Heat transfer printing is not only suitable for synthetic fiber fabrics, but also for natural fiber pure and blended fabrics. It has the following advantages:

(1) No water, no sewage;

(2) The process flow is short, and the finished product after printing does not need steaming, washing and other post-treatment processes;

(3) Fine patterns, rich and clear layers, high artistry, strong three-dimensional sense, which is beyond the general printing method, and can print patterns of photography and painting style;

(4) In the sublimation process, tar in the dye is left on the transfer paper, which will not pollute the fabric;

(5) The rate of authentic products is high, when transferring, multiple sets of color patterns can be printed at one time without matching flowers;

(6) Flexibility, customers can select the pattern in a short time after printing.

Simple operation, stable performance, uniform heating, pressure balance, heating temperature 0-300 degrees, temperature difference ± 1 degree, heating around, heating fast. Oil balance temperature, continuous transfer without color difference, frequency control, stable operation, vertical triple positioning, alignment, whole roll, multiple simultaneous transfer, fast speed and high efficiency!

Specifications:

Width: 60cm

Voltage: three phase 380V

Power: 8kw

Transfer speed: 700 ~ 1600rpm

Fast transfer: 120 m / h

Can provide free installation and debugging equipment, free training ribbon heat transfer operators; One year warranty, lifelong maintenance, perfect after-sales service and comprehensive technical support to solve the worry free.

It is suitable for printing all kinds of headbands, horse racing belts, special belts, mobile phone belts, pockets, shoelaces and waistbands. It is not affected by the thickness and width of the ribbon in production. It can also press all kinds of ribbon flat.

Wuxi Chengming production of ribbon printing machine, elastic belt printing machine, high output, low energy consumption, drum diameter: 420mm 500mm 600mm 800mm 1000mm

Kuan is customized according to the requirements of customers. It can sample for customers for free and make bulk goods. Customers can go to the factory to inspect the goods and arrange the delivery after the inspection is qualified.

Sample display
